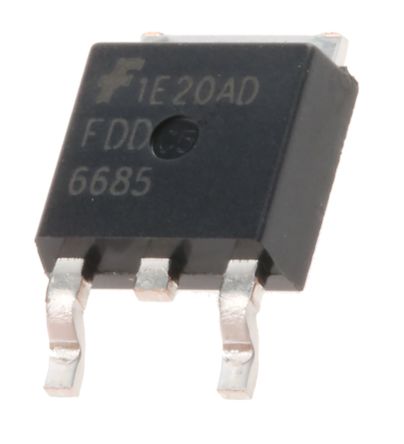

FDD6685 P-Channel MOSFET, 11 A, 30 V PowerTrench, 3-Pin DPAK ON Semiconductor [FDD6685]; 166-2044
0₫
Mã kho: 1662044
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.458333333333333 |
Maximum Drain Source Voltage | 30 V |
Package Type | DPAK (TO-252) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 30 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 52 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 6.22mm |
Typical Gate Charge @ Vgs | 17 nC @ 5 V |
Height | 2.39mm |
Series | PowerTrench |
Length | 6.73mm |
Maximum Operating Temperature | +175 °C |
Transistor Material | Si |
