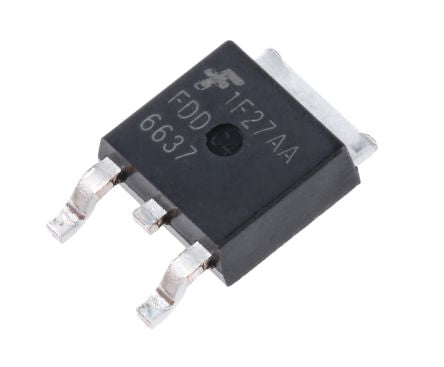

FDD6637 P-Channel MOSFET, 55 A, 35 V PowerTrench, 3-Pin DPAK ON Semiconductor [FDD6637]; 166-2644
0₫
Mã kho: 1662644
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 55 A |
| Maximum Drain Source Voltage | 35 V |
| Package Type | DPAK (TO-252) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 19 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 57 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Length | 6.73mm |
| Minimum Operating Temperature | -55 °C |
| Width | 6.22mm |
| Transistor Material | Si |
| Height | 2.39mm |
| Typical Gate Charge @ Vgs | 45 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Series | PowerTrench |
