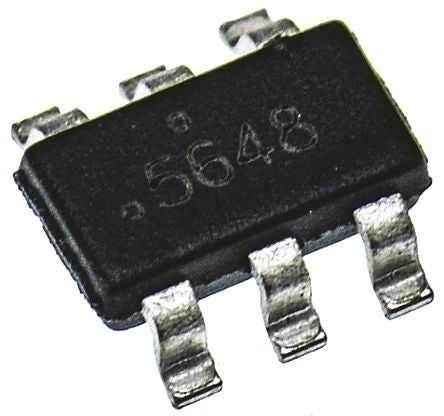

FDC86244 N-Channel MOSFET, 2.3 A, 150 V PowerTrench, 6-Pin SOT-23 ON Semiconductor [FDC86244]; 864-8026
0₫
Mã kho: 8648026
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.3 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 273 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 1.6 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Height | 1mm |
| Series | PowerTrench |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Width | 1.7mm |
| Typical Gate Charge @ Vgs | 4.2 nC @ 10 V |
