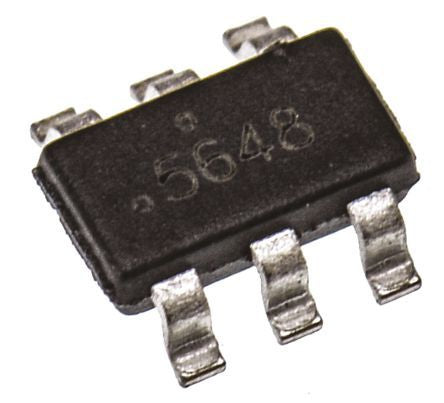

FDC6321C Dual N/P-Channel MOSFET, 460 mA, 680 mA, 25 V, 6-Pin SOT-23 ON Semiconductor [FDC6321C]; 166-2481
0₫
Mã kho: 1662481
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 460 mA, 680 mA |
| Maximum Drain Source Voltage | 25 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 1.1 Ω, 450 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.65V |
| Maximum Power Dissipation | 900 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Width | 1.7mm |
| Height | 1mm |
| Typical Gate Charge @ Vgs | 1.1 nC @ 4.5 V, 1.64 nC @ 4.5 V |
| Length | 3mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
