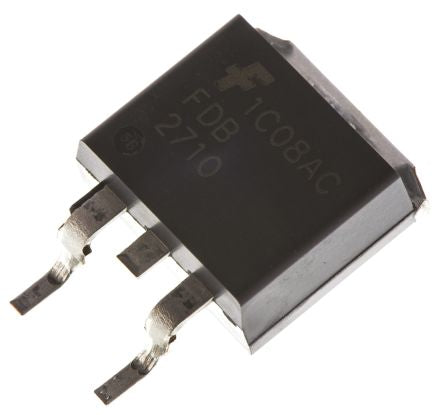

FDB2710 N-Channel MOSFET, 50 A, 250 V PowerTrench, 3-Pin D2PAK ON Semiconductor [FDB2710]; 759-8961
0₫
Mã kho: 7598961
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 250 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 42 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 260 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 78 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Length | 10.67mm |
| Width | 11.33mm |
| Height | 4.83mm |
| Series | PowerTrench |
| Transistor Material | Si |
