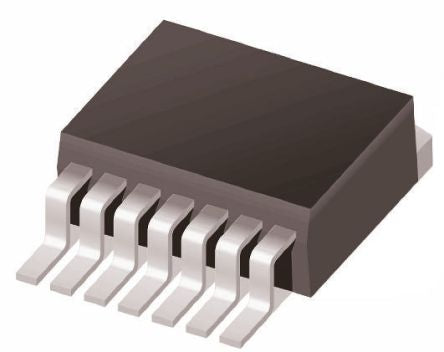

FDB024N08BL7 N-Channel MOSFET, 229 A, 80 V PowerTrench, 7-Pin D2PAK ON Semiconductor [FDB024N08BL7]; 166-3399
0₫
Mã kho: 1663399
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 229 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | D2PAK (TO-263) |
| Mounting Type | Surface Mount |
| Pin Count | 7 |
| Maximum Drain Source Resistance | 2.4 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 246 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 9.4mm |
| Transistor Material | Si |
| Length | 10.2mm |
| Maximum Operating Temperature | +175 °C |
| Series | PowerTrench |
| Height | 4.7mm |
| Typical Gate Charge @ Vgs | 137 nC @ 40 V |
