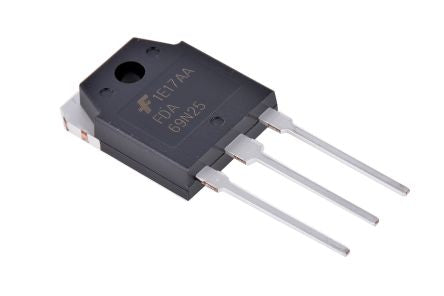

![ON Semiconductor FDA69N25 1454400](http://nguyenxuong.com/cdn/shop/products/F8090792-01_dd5ae09d-27f6-43b0-9c7d-e640130fcc6f_444x296.jpg?v=1594342091)
FDA69N25 N-Channel MOSFET, 69 A, 250 V UniFET, 3-Pin TO-3PN ON Semiconductor [FDA69N25]; 145-4400
0₫
Mã kho: 1454400
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 69 A |
Maximum Drain Source Voltage | 250 V |
Package Type | TO-3PN |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 41 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 480 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 5mm |
Typical Gate Charge @ Vgs | 77 nC @ 10 V |
Height | 20.1mm |
Series | UniFET |
Maximum Operating Temperature | +150 °C |
Length | 15.8mm |
Transistor Material | Si |
