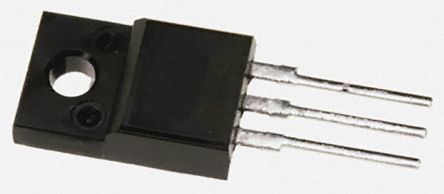

FCPF600N60Z N-Channel MOSFET, 7.4 A, 600 V SuperFET II, 3-Pin TO-220F ON Semiconductor [FCPF600N60Z]; 774-1127
0₫
Mã kho: 7741127
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 7.4 A |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-220F |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 600 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 28 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | +30 V |
| Number of Elements per Chip | 1 |
| Width | 4.9mm |
| Height | 16.07mm |
| Series | SuperFET II |
| Maximum Operating Temperature | +150 °C |
| Length | 10.36mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 20 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
