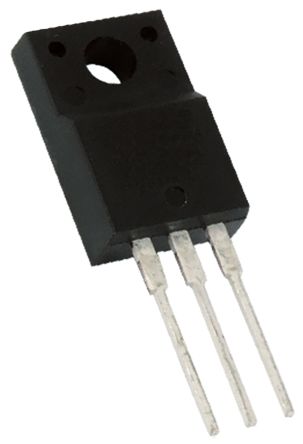

FCPF190N65S3L1 N-Channel MOSFET, 14 A, 650 V, 3-Pin TO-220F ON Semiconductor [FCPF190N65S3L1]; 172-4638
0₫
Mã kho: 1724638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 14 A |
Maximum Drain Source Voltage | 650 V |
Package Type | TO-220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 190 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 33 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 4.6mm |
Forward Diode Voltage | 1.2V |
Length | 10.3mm |
Maximum Operating Temperature | +150 °C |
Height | 15.7mm |
Typical Gate Charge @ Vgs | 30 nC @ 10 V |
