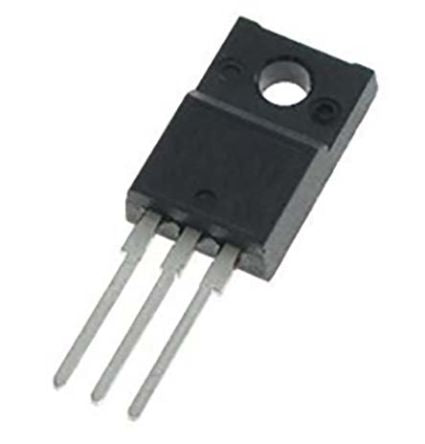

![ON Semiconductor FCPF165N65S3L1 1464114](http://nguyenxuong.com/cdn/shop/products/Y1464114-01_425x444.jpg?v=1594235366)
FCPF165N65S3L1 Dual N-Channel MOSFET, 19 A, 650 V SuperFET III, 3-Pin TO220F ON Semiconductor [FCPF165N65S3L1]; 146-4114
0₫
Mã kho: 1464114
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 19 A |
Maximum Drain Source Voltage | 650 V |
Package Type | TO220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 165 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 35 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V ac/dc |
Number of Elements per Chip | 2 |
Length | 10.3mm |
Width | 4.6mm |
Height | 15.7mm |
Series | SuperFET III |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 35 @ 10 V nC |
Maximum Operating Temperature | +150 °C |
Forward Diode Voltage | 1.2V |
