![ON Semiconductor FCPF067N65S3 1723426](http://nguyenxuong.com/cdn/shop/products/R1723426-01_303x444.jpg?v=1594137866)

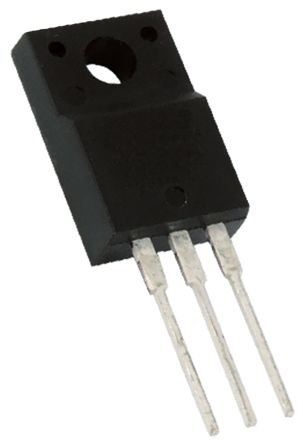

FCPF067N65S3 N-Channel MOSFET, 44 A, 650 V, 3-Pin TO-220F ON Semiconductor [FCPF067N65S3]; 172-3426
0₫
Mã kho: 1723426
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 44 A |
Maximum Drain Source Voltage | 650 V |
Package Type | TO-220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 67 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4.5V |
Minimum Gate Threshold Voltage | 2.5V |
Maximum Power Dissipation | 46 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±30 V |
Number of Elements per Chip | 1 |
Width | 4.9mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 78 nC @ 10 V |
Height | 16.07mm |
Length | 10.36mm |
Forward Diode Voltage | 1.2V |
