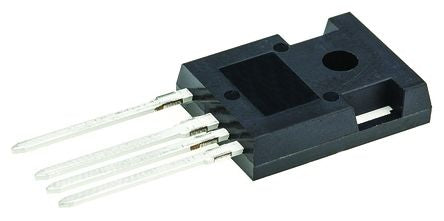

FCH023N65S3L4 N-Channel MOSFET, 75 A, 650 V, 4-Pin TO-247 A04 ON Semiconductor [FCH023N65S3L4]; 172-4616
0₫
Mã kho: 1724616
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 75 A |
| Maximum Drain Source Voltage | 650 V |
| Package Type | TO-247 A04 |
| Mounting Type | Through Hole |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 23 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 595 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 222 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Length | 15.8mm |
| Forward Diode Voltage | 1.2V |
| Width | 5.2mm |
| Minimum Operating Temperature | -55 °C |
| Height | 22.74mm |
