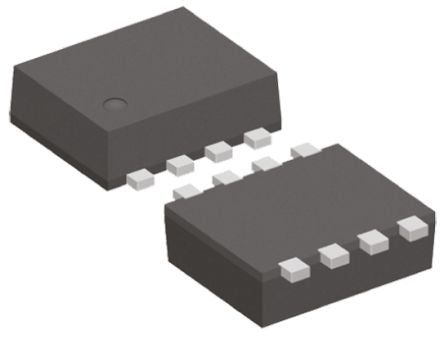

EMH2604-TL-H Dual N/P-Channel MOSFET, 3 A, 4 A, 20 V, 8-Pin EMH ON Semiconductor [EMH2604-TL-H]; 801-0171
0₫
Mã kho: 8010171
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 3 A, 4 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | EMH |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 115 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 1.2 W |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 2 |
| Transistor Material | Si |
| Height | 0.75mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 4.7 nC @ 4.5 V |
| Width | 1.7mm |
| Length | 2mm |
