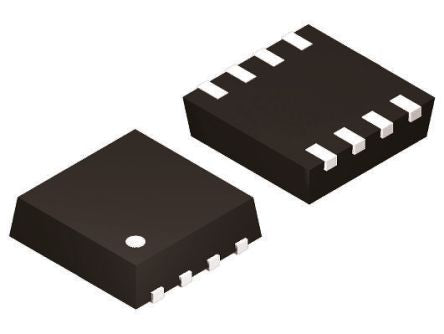

ECH8661-TL-H Dual N/P-Channel MOSFET, 5.5 A, 7 A, 30 V, 8-Pin ECH ON Semiconductor [ECH8661-TL-H]; 163-2130
0₫
Mã kho: 1632130
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 5.5 A, 7 A |
Maximum Drain Source Voltage | 30 V |
Package Type | ECH |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 24 mΩ, 39 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.6V |
Maximum Power Dissipation | 1.3 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 2 |
Typical Gate Charge @ Vgs | 11.8 nC @ 10 V |
Height | 0.9mm |
Maximum Operating Temperature | +150 °C |
Length | 2.9mm |
Transistor Material | Si |
Width | 2.3mm |
