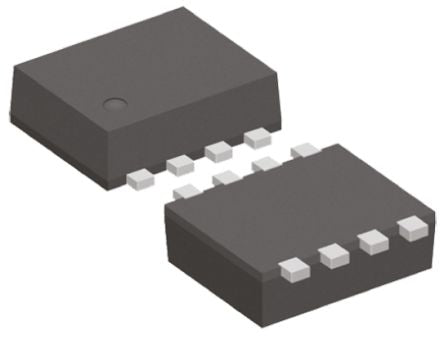

ECH8315-TL-H P-Channel MOSFET, 7.5 A, 30 V, 8-Pin ECH ON Semiconductor [ECH8315-TL-H]; 145-3580
0₫
Mã kho: 1453580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 7.5 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | ECH |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 25 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.6V |
| Maximum Power Dissipation | 1.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Length | 2.9mm |
| Transistor Material | Si |
| Width | 2.3mm |
| Height | 0.9mm |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V |
