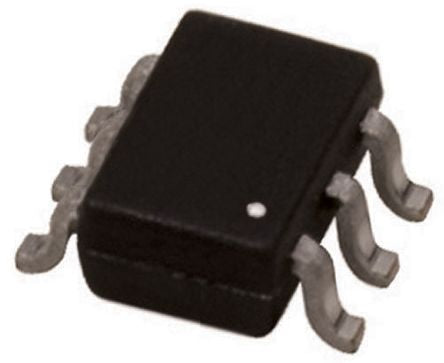

CPH6443-TL-W N-Channel MOSFET, 6 A, 35 V, 6-Pin CPH ON Semiconductor [CPH6443-TL-W]; 162-9951
0₫
Mã kho: 1629951
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.25 |
| Maximum Drain Source Voltage | 35 V |
| Package Type | CPH |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 73 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.6V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 1.6 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 1.6mm |
| Typical Gate Charge @ Vgs | 10 nC @ 10 V |
| Height | 0.9mm |
| Maximum Operating Temperature | +150 °C |
| Length | 2.9mm |
| Forward Diode Voltage | 1.2V |
| Transistor Material | Si |
