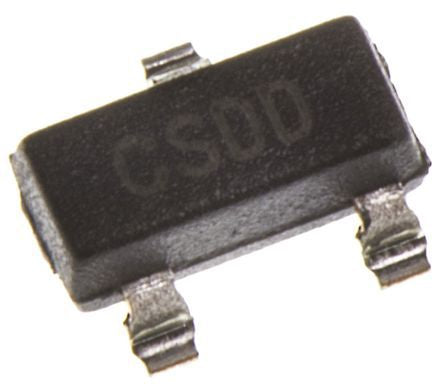

CPH3455-TL-W N-Channel MOSFET, 3 A, 35 V, 3-Pin CPH3 ON Semiconductor [CPH3455-TL-W]; 162-9950
0₫
Mã kho: 1629950
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 35 V |
| Package Type | CPH3 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 208 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.6V |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 2.9mm |
| Forward Diode Voltage | 1.2V |
| Transistor Material | Si |
| Width | 1.6mm |
| Typical Gate Charge @ Vgs | 4 nC @ 10 V |
| Height | 0.9mm |
| Maximum Operating Temperature | +150 °C |
