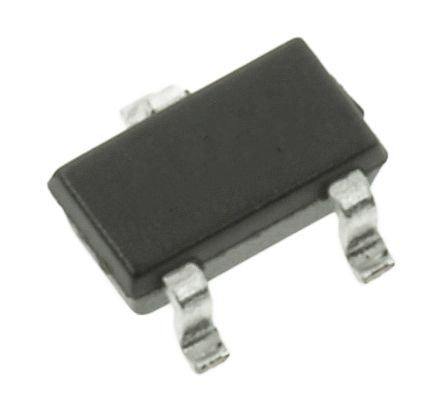

P-Channel MOSFET, 1.8 A, 60 V, 3-Pin SC-59 [CPH3351-TL-W]; 184-4912
0₫
Mã kho: 1844912
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 1.8 A |
| Maximum Drain Source Voltage | 60 V |
| Package Type | SC-59 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 350 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.2V |
| Width | 1.6mm |
| Typical Gate Charge @ Vgs | 6 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
| Length | 2.9mm |
