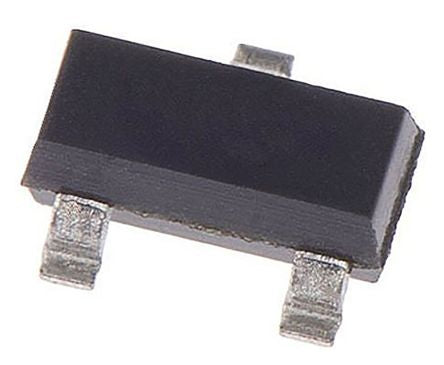

CPH3350-TL-H P-Channel MOSFET, 3 A, 20 V, 3-Pin CPH ON Semiconductor [CPH3350-TL-H]; 163-2101
0₫
Mã kho: 1632101
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.125 |
| Maximum Drain Source Voltage | 20 V |
| Package Type | CPH |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 196 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1.3V |
| Maximum Power Dissipation | 1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 1 |
| Width | 1.6mm |
| Length | 2.9mm |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
| Typical Gate Charge @ Vgs | 4.6 nC @ 4.5 V |
