![ON Semiconductor CPH3348-TL-W 1629947](http://nguyenxuong.com/cdn/shop/products/R9209773-01_444x389.jpg?v=1594288069)

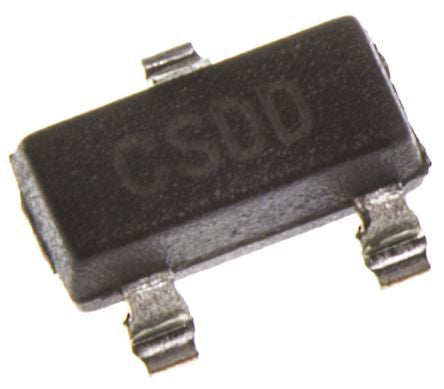

CPH3348-TL-W P-Channel MOSFET, 3 A, 12 V, 3-Pin CPH3 ON Semiconductor [CPH3348-TL-W]; 162-9947
0₫
Mã kho: 1629947
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.125 |
Maximum Drain Source Voltage | 12 V |
Package Type | CPH3 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 215 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.4V |
Minimum Gate Threshold Voltage | 0.4V |
Maximum Power Dissipation | 1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -10 V, +10 V |
Number of Elements per Chip | 1 |
Width | 1.6mm |
Typical Gate Charge @ Vgs | 5.6 nC @ 4.5 V |
Maximum Operating Temperature | +150 °C |
Length | 2.9mm |
Transistor Material | Si |
Forward Diode Voltage | 1.2V |
Height | 0.9mm |
