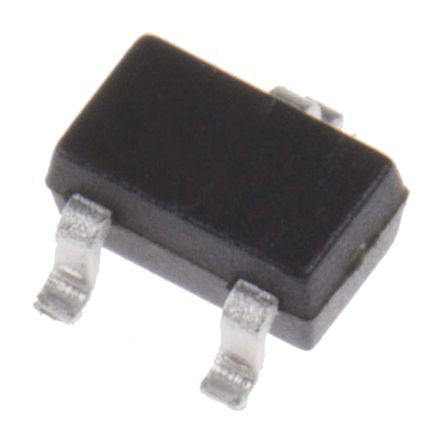

N-Channel MOSFET, 170 mA, 100 V, 3-Pin SOT-323 [BSS123W]; 184-4673
0₫
Mã kho: 1844673
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 170 mA |
Maximum Drain Source Voltage | 100 V |
Package Type | SOT-323 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 10 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2V |
Minimum Gate Threshold Voltage | 0.8V |
Maximum Power Dissipation | 200 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 1.25mm |
Forward Diode Voltage | 1.3V |
Length | 2mm |
Height | 1mm |
Maximum Operating Temperature | +150 °C |
