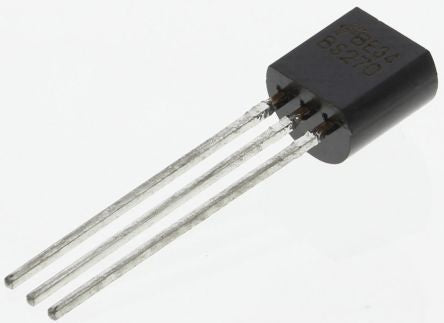

BS270 N-Channel MOSFET, 400 mA, 60 V, 3-Pin TO-92 ON Semiconductor [BS270]; 166-3593
0₫
Mã kho: 1663593
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 400 mA |
| Maximum Drain Source Voltage | 60 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 3.5 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 625 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 3.93mm |
| Maximum Operating Temperature | +150 °C |
| Height | 4.7mm |
| Length | 4.7mm |
| Transistor Material | Si |
