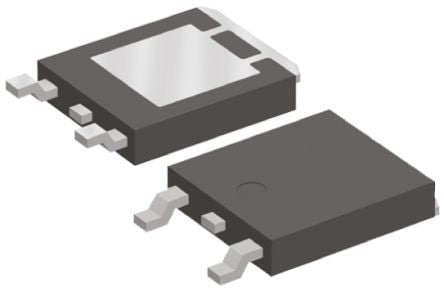

ATP301-TL-H P-Channel MOSFET, 28 A, 100 V, 3-Pin ATPAK ON Semiconductor [ATP301-TL-H]; 121-6470
0₫
Mã kho: 1216470
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 28 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | ATPAK |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 75 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Maximum Power Dissipation | 70 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 7.3mm |
| Height | 1.5mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.5mm |
| Typical Gate Charge @ Vgs | 73 nC @ 10 V |
