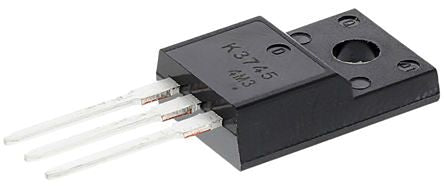

2SK3745LS-1E N-Channel MOSFET, 2 A, 1500 V, 3-Pin TO-220F ON Semiconductor [2SK3745LS-1E]; 124-9945
0₫
Mã kho: 1249945
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.0833333333333333 |
Maximum Drain Source Voltage | 1500 V |
Package Type | TO-220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 13 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3.5V |
Maximum Power Dissipation | 35 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 4.7mm |
Height | 15.87mm |
Maximum Operating Temperature | +150 °C |
Length | 10.16mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 37.5 nC @ 10 V |
