![ON Semiconductor 2N7002T 1662854](http://nguyenxuong.com/cdn/shop/products/R1234051-04_9c92e6e6-fd3b-434a-bfb9-fa8e6e0c497a_321x295.jpg?v=1594290301)

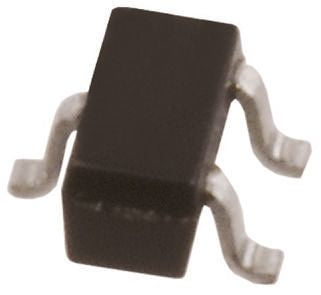

2N7002T N-Channel MOSFET, 115 mA, 60 V, 3-Pin SOT-523 ON Semiconductor [2N7002T]; 166-2854
0₫
Mã kho: 1662854
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 115 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-523 (SC-89) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 13.5 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 200 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Maximum Operating Temperature | +150 °C |
Height | 0.78mm |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Length | 1.7mm |
Width | 0.98mm |
