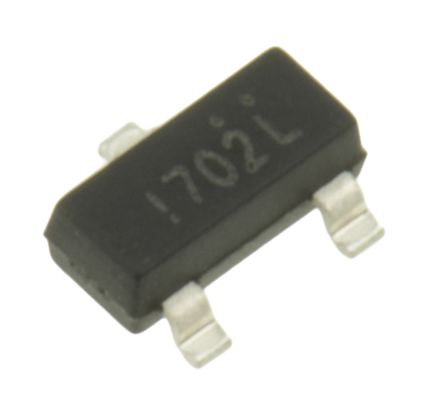

![ON Semiconductor 2N7002 1241692](http://nguyenxuong.com/cdn/shop/products/F6710312-01_715361da-2dc7-4a1a-96f8-58ae24188b9a_444x418.jpg?v=1594063301)
2N7002 N-Channel MOSFET, 115 mA, 60 V, 3-Pin SOT-23 ON Semiconductor [2N7002]; 124-1692
0₫
Mã kho: 1241692
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 115 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 7.5 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 200 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 1.3mm |
Height | 0.93mm |
Maximum Operating Temperature | +150 °C |
Length | 2.92mm |
Transistor Material | Si |
