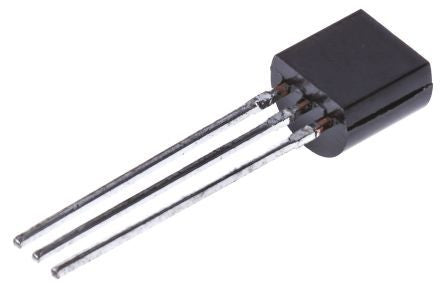

N-Channel MOSFET, 200 mA, 60 V, 3-Pin TO-92 [2N7000-D26Z]; 184-4156
0₫
Mã kho: 1844156
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 200 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | TO-92 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 9 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Minimum Gate Threshold Voltage | 0.8V |
Maximum Power Dissipation | 400 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Length | 5.2mm |
Width | 4.19mm |
Height | 5.33mm |
Forward Diode Voltage | 1.5V |
Maximum Operating Temperature | +150 °C |
