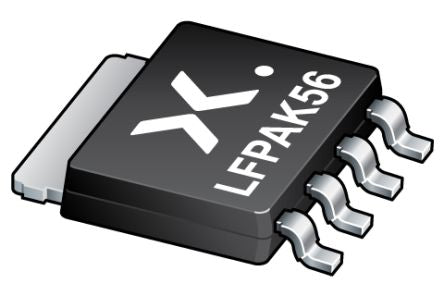

PSMN3R5-30YL,115 N-Channel MOSFET, 100 A, 30 V, 4+Tab-Pin LFPAK Nexperia [PSMN3R5-30YL,115]; 153-2878
by Nexperia
0₫
Mã kho: 1532878
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 100 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | LFPAK |
| Mounting Type | Surface Mount |
| Pin Count | 4 + Tab |
| Maximum Drain Source Resistance | 6 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.45V |
| Minimum Gate Threshold Voltage | 0.65V |
| Maximum Power Dissipation | 74 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 19 nC |
| Length | 5mm |
| Width | 4.1mm |
| Maximum Operating Temperature | +175 °C |
| Minimum Operating Temperature | -55 °C |
