![Nexperia PSMN2R7-30PL,127 7982930](http://nguyenxuong.com/cdn/shop/products/R7982930-01_f8ce42b1-ddbe-463e-a188-0658c3b52681_444x291.jpg?v=1594388396)

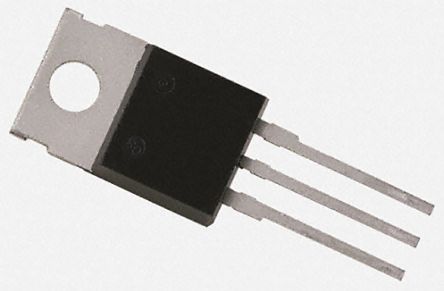

PSMN2R7-30PL,127 N-Channel MOSFET, 100 A, 30 V, 3-Pin TO-220AB Nexperia [PSMN2R7-30PL,127]; 798-2930
by Nexperia
0₫
Mã kho: 7982930
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 100 A |
Maximum Drain Source Voltage | 30 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 2.7 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.15V |
Minimum Gate Threshold Voltage | 1.3V |
Maximum Power Dissipation | 170 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Width | 4.7mm |
Length | 10.3mm |
Typical Gate Charge @ Vgs | 66 nC @ 10 V |
Height | 16mm |
Maximum Operating Temperature | +175 °C |
