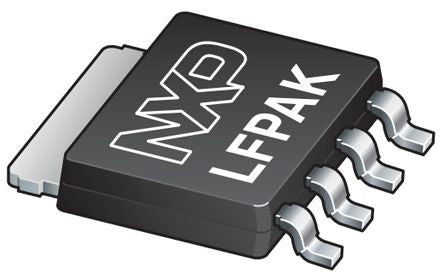

PSMN039-100YS,115 N-Channel MOSFET, 28 A, 100 V, 4-Pin SOT-669 Nexperia [PSMN039-100YS,115]; 798-2886
by Nexperia
0₫
Mã kho: 7982886
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 28 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | SOT-669 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 71 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 74 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 4.1mm |
| Height | 1.1mm |
| Maximum Operating Temperature | +175 °C |
| Length | 5mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 23 nC @ 10 V |
