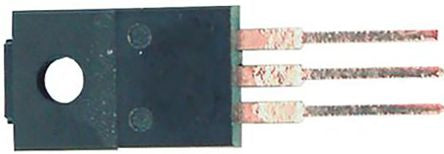

PSMN027-100XS,127 N-Channel MOSFET, 23 A, 100 V, 3-Pin TO-220F Nexperia [PSMN027-100XS,127]; 798-2870
by Nexperia
0₫
Mã kho: 7982870
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 23 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | TO-220F |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 26.8 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 41.1 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 4.6mm |
| Height | 15.8mm |
| Length | 10.3mm |
| Maximum Operating Temperature | +175 °C |
| Typical Gate Charge @ Vgs | 30 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
