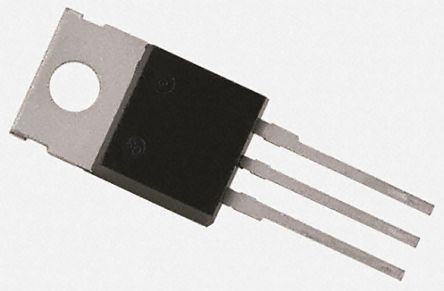

PSMN015-60PS,127 N-Channel MOSFET, 50 A, 60 V, 3-Pin TO-220AB Nexperia [PSMN015-60PS,127]; 165-9832
by Nexperia
0₫
Mã kho: 1659832
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 50 A |
Maximum Drain Source Voltage | 60 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 23.7 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 86 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 4.7mm |
Minimum Operating Temperature | -55 °C |
Height | 16mm |
Typical Gate Charge @ Vgs | 20.9 nC @ 10 V |
Length | 10.3mm |
Transistor Material | Si |
Maximum Operating Temperature | +175 °C |
