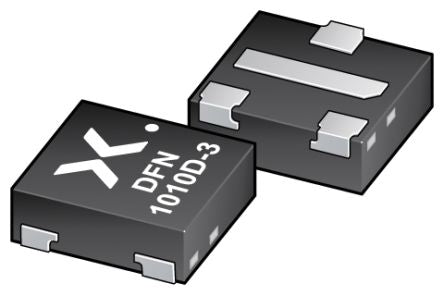

PMXB120EPEZ 3 P-Channel MOSFET, -2.4 A, -30 V, 4-Pin DFN1010D-3, SOT1215 Nexperia [PMXB120EPEZ]; 151-3073
by Nexperia
0₫
Mã kho: 1513073
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | -2.4 A |
| Maximum Drain Source Voltage | -30 V |
| Package Type | DFN1010D-3, SOT1215 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 187 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | -2.5V |
| Minimum Gate Threshold Voltage | -1V |
| Maximum Power Dissipation | 8.33 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 3 |
| Width | 1.05mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 6.2 nC |
| Height | 0.36mm |
| Length | 1.15mm |
| Maximum Operating Temperature | +150 °C |
