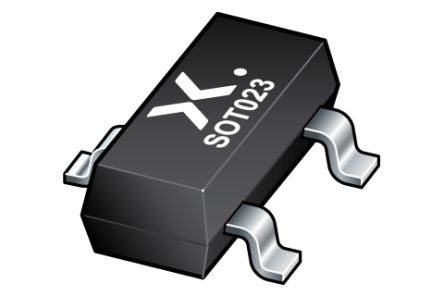

PMV30XPEAR 3 P-Channel MOSFET, -5.3 A, -20 V, 3-Pin SOT-23 Nexperia [PMV30XPEAR]; 153-1886
by Nexperia
0₫
Mã kho: 1531886
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | -5.3 A |
Maximum Drain Source Voltage | -20 V |
Package Type | SOT23, TO-236AB |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 57 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | -1.25V |
Minimum Gate Threshold Voltage | -0.75V |
Maximum Power Dissipation | 5435 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | 12 V |
Number of Elements per Chip | 3 |
Height | 1mm |
Width | 1.4mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 11 nC |
Length | 3mm |
Automotive Standard | AEC-Q101 |
