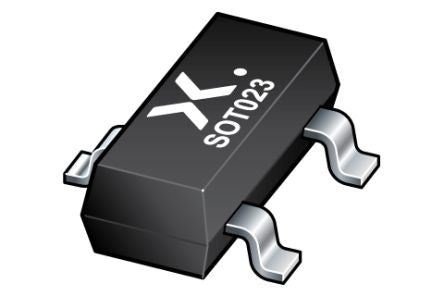

PMV27UPEAR 3 P-Channel MOSFET, -5.6 A, -20 V, 3-Pin SOT-23 Nexperia [PMV27UPEAR]; 153-0707
by Nexperia
0₫
Mã kho: 1530707
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | -5.6 A |
| Maximum Drain Source Voltage | -20 V |
| Package Type | SOT23, TO-236AB |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 63 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | -0.95V |
| Minimum Gate Threshold Voltage | -0.45V |
| Maximum Power Dissipation | 4150 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 8 V |
| Number of Elements per Chip | 3 |
| Height | 1mm |
| Automotive Standard | AEC-Q101 |
| Length | 3mm |
| Width | 1.4mm |
| Typical Gate Charge @ Vgs | 14.7 nC |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
