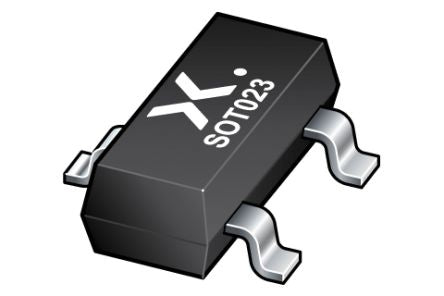

PMV25ENEAR 3 N-Channel MOSFET, 5.5 A, 30 V, 3-Pin SOT-23 Nexperia [PMV25ENEAR]; 151-3122
by Nexperia
0₫
Mã kho: 1513122
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 5.5 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | SOT23, TO-236AB |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 39 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 6.94 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Typical Gate Charge @ Vgs | 12.6 nC |
| Height | 1.1mm |
| Length | 3mm |
| Maximum Operating Temperature | +150 °C |
| Width | 1.4mm |
