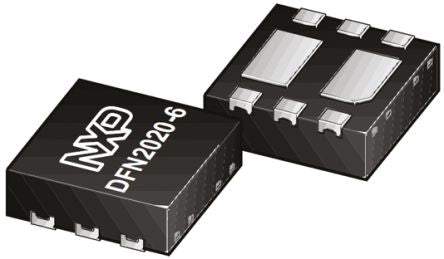

PMPB20EN,115 N-Channel MOSFET, 7 A, 30 V, 8-Pin DFN2020 Nexperia [PMPB20EN,115]; 165-9790
by Nexperia
0₫
Mã kho: 1659790
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.291666666666667 |
| Maximum Drain Source Voltage | 30 V |
| Package Type | DFN2020 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 19.5 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 12.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 2.1mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 7.2 nC @ 10 V |
| Height | 0.65mm |
| Transistor Material | Si |
| Length | 2.1mm |
