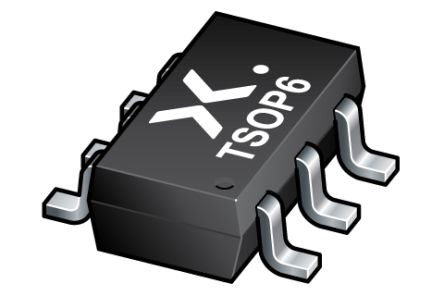

PMN70XPEAX 3 P-Channel MOSFET, -4.1 A, -20 V, 6-Pin SC-74, SOT457 Nexperia [PMN70XPEAX]; 153-0671
by Nexperia
0₫
Mã kho: 1530671
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | -4.1 A |
| Maximum Drain Source Voltage | -20 V |
| Package Type | SC-74, SOT457 |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 129 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | -1.25V |
| Minimum Gate Threshold Voltage | -0.75V |
| Maximum Power Dissipation | 6250 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 12 V |
| Number of Elements per Chip | 3 |
| Minimum Operating Temperature | -55 °C |
| Width | 1.7mm |
| Automotive Standard | AEC-Q101 |
| Height | 1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 3.1mm |
| Typical Gate Charge @ Vgs | 5.2 nC |
