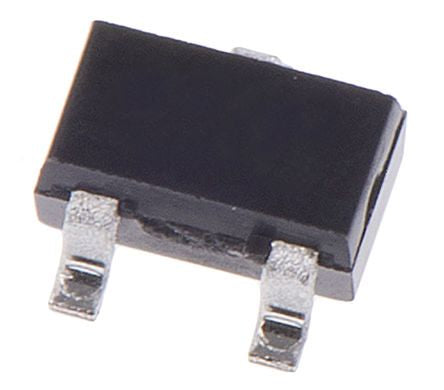

PMF370XN,115 N-Channel MOSFET, 870 mA, 30 V, 3-Pin SOT-323 Nexperia [PMF370XN,115]; 166-0611
by Nexperia
0₫
Mã kho: 1660611
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 870 mA |
Maximum Drain Source Voltage | 30 V |
Package Type | SOT-323 (SC-70) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 440 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.5V |
Minimum Gate Threshold Voltage | 0.5V |
Maximum Power Dissipation | 560 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -12 V, +12 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Width | 1.35mm |
Height | 1mm |
Maximum Operating Temperature | +150 °C |
Length | 2.2mm |
Typical Gate Charge @ Vgs | 0.65 nC @ 4.5 V |
