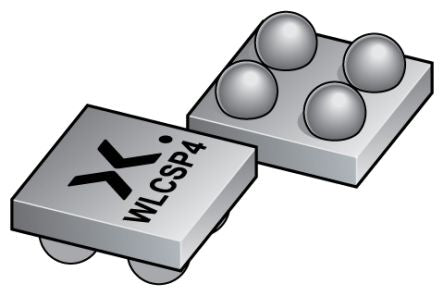

PMCM4401VNEAZ N-Channel MOSFET, 6 A, 12 V, 4-Pin WLCSP Nexperia [PMCM4401VNEAZ]; 153-2851
by Nexperia
0₫
Mã kho: 1532851
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.25 |
| Maximum Drain Source Voltage | 12 V |
| Package Type | WLCSP |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 120 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 0.9V |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 12.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 8 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 0.81mm |
| Length | 0.81mm |
| Typical Gate Charge @ Vgs | 6 nC |
| Maximum Operating Temperature | +150 °C |
| Height | 0.16mm |
