![Nexperia PHT6NQ10T,135 509576](http://nguyenxuong.com/cdn/shop/products/L287235-16_0de4b394-7850-4f53-8d5b-5f28cd8fb666_444x315.jpg?v=1594252389)

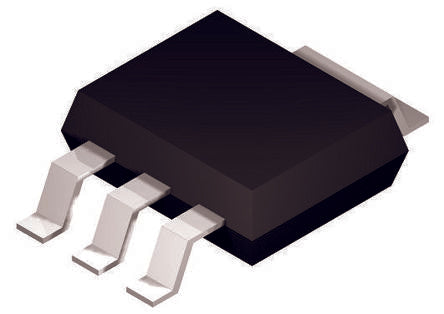

PHT6NQ10T,135 N-Channel MOSFET, 3 A, 100 V, 4-Pin SOT-223 (SC-73) Nexperia [PHT6NQ10T,135]; 509-576
by Nexperia
0₫
Mã kho: 509576
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.125 |
Maximum Drain Source Voltage | 100 V |
Package Type | SOT-223 (SC-73) |
Mounting Type | Surface Mount |
Pin Count | 4 |
Maximum Drain Source Resistance | 90 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 1.8 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Height | 1.7mm |
Maximum Operating Temperature | +150 °C |
Width | 3.7mm |
Length | 6.7mm |
Typical Gate Charge @ Vgs | 21 nC @ 10 V |
Minimum Operating Temperature | -65 °C |
Transistor Material | Si |
