![Nexperia NX3008CBKV,115 1660097](http://nguyenxuong.com/cdn/shop/products/R8160567-01_444x346.jpg?v=1594100941)

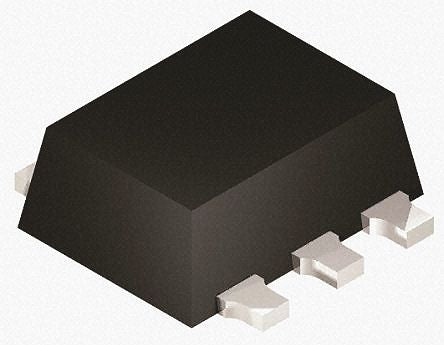

NX3008CBKV,115 Dual N/P-Channel MOSFET, 220 mA, 400 mA, 30 V, 6-Pin SOT-666 Nexperia [NX3008CBKV,115]; 166-0097
by Nexperia
0₫
Mã kho: 1660097
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 220 mA, 400 mA |
Maximum Drain Source Voltage | 30 V |
Package Type | SOT-666 |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 2.8 Ω, 7.8 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.1V |
Minimum Gate Threshold Voltage | 0.6V |
Maximum Power Dissipation | 500 mW |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Width | 1.3mm |
Height | 0.6mm |
Transistor Material | Si |
Length | 1.7mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 0.52 nC @ 4.5 V, 0.55 nC @ 4.5 V |
