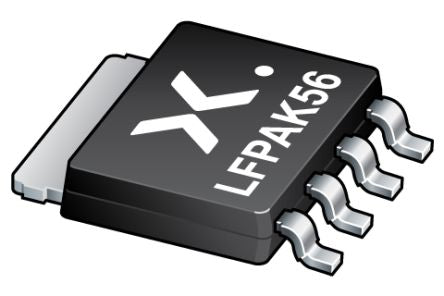

BUK9Y29-40E,115 N-Channel MOSFET, 25 A, 40 V, 4+Tab-Pin LFPAK56, Power SO8 Nexperia [BUK9Y29-40E,115]; 153-2923
by Nexperia
0₫
Mã kho: 1532923
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 25 A |
| Maximum Drain Source Voltage | 40 V |
| Package Type | LFPAK56, Power SO8 |
| Mounting Type | Surface Mount |
| Pin Count | 4 + Tab |
| Maximum Drain Source Resistance | 58.3 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.45V |
| Minimum Gate Threshold Voltage | 0.5V |
| Maximum Power Dissipation | 37 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 15 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Automotive Standard | AEC-Q101 |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 5 nC |
| Maximum Operating Temperature | +175 °C |
| Length | 5mm |
| Width | 4.1mm |
