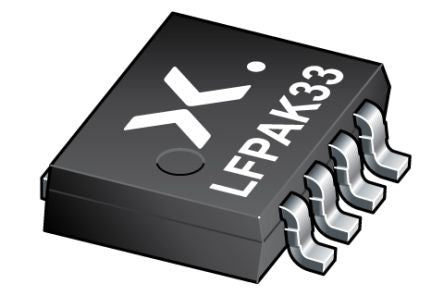

BUK9M34-100EX N-Channel MOSFET, 29 A, 100 V, 4-Pin LFPAK33, Power33 Nexperia [BUK9M34-100EX]; 153-0629
by Nexperia
0₫
Mã kho: 1530629
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 29 A |
Maximum Drain Source Voltage | 100 V |
Package Type | LFPAK33, Power33 |
Mounting Type | Surface Mount |
Pin Count | 4 |
Maximum Drain Source Resistance | 97 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.45V |
Minimum Gate Threshold Voltage | 1.4V |
Maximum Power Dissipation | 79 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | 15 V |
Number of Elements per Chip | 1 |
Height | 0.9mm |
Width | 2.6mm |
Typical Gate Charge @ Vgs | 24.7 nC |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Automotive Standard | AEC-Q101 |
Length | 3.4mm |
