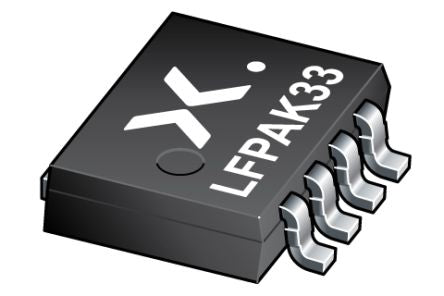

BUK9M10-30EX N-Channel MOSFET, 54 A, 30 V, 4-Pin LFPAK33, Power33 Nexperia [BUK9M10-30EX]; 153-0763
by Nexperia
0₫
Mã kho: 1530763
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 54 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | LFPAK33, Power33 |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 18.7 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.1V |
| Minimum Gate Threshold Voltage | 1.4V |
| Maximum Power Dissipation | 55 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 15 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 5.5 nC |
| Automotive Standard | AEC-Q101 |
| Height | 0.9mm |
| Maximum Operating Temperature | +175 °C |
| Length | 3.4mm |
| Width | 2.6mm |
| Minimum Operating Temperature | -55 °C |
