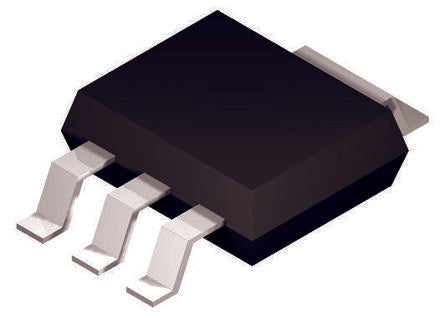

BSP225,115 P-Channel MOSFET, 225 mA, 250 V, 4-Pin SOT-223 (SC-73) Nexperia [BSP225,115]; 166-1566
by Nexperia
0₫
Mã kho: 1661566
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 225 mA |
| Maximum Drain Source Voltage | 250 V |
| Package Type | SOT-223 (SC-73) |
| Mounting Type | Surface Mount |
| Pin Count | 4 |
| Maximum Drain Source Resistance | 15 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.8V |
| Minimum Gate Threshold Voltage | 0.8V |
| Maximum Power Dissipation | 1.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 6.7mm |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Transistor Material | Si |
| Width | 3.7mm |
| Height | 1.7mm |
