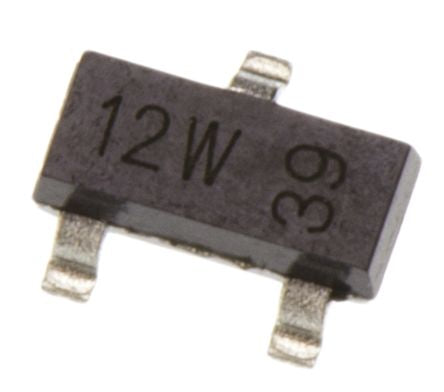

2N7002,215 N-Channel MOSFET, 300 mA, 60 V, 3-Pin SOT-23 Nexperia [2N7002,215]; 436-7379
by Nexperia
0₫
Mã kho: 4367379
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 300 mA |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-23 (TO-236AB) |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 5 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 2.5V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 830 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -65 °C |
Transistor Material | Si |
Length | 3mm |
Maximum Operating Temperature | +150 °C |
Height | 1mm |
Width | 1.4mm |
