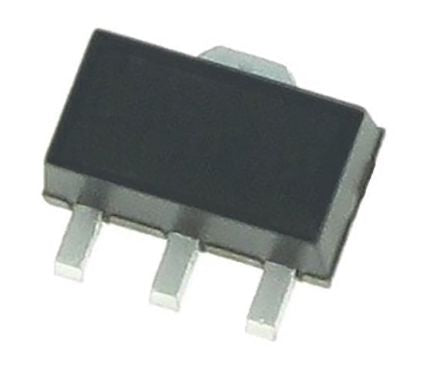

VP2450N8-G P-Channel MOSFET, 160 mA, 500 (Minimum) V VP2450, 3-Pin SOT-89 Microchip Technology [VP2450N8-G]; 177-9709
by Microchip
0₫
Mã kho: 1779709
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 160 mA |
| Maximum Drain Source Voltage | 500 V |
| Package Type | SOT-89 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 35 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 3.5V |
| Minimum Gate Threshold Voltage | 1.5V |
| Maximum Power Dissipation | 1.6 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | 20 V |
| Number of Elements per Chip | 1 |
| Series | VP2450 |
| Minimum Operating Temperature | -55 °C |
| Width | 2.6mm |
| Maximum Operating Temperature | +150 °C |
| Length | 4.6mm |
| Forward Diode Voltage | 1.8V |
| Height | 1.6mm |
