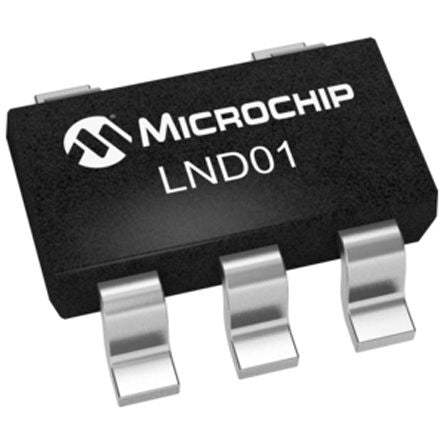

LND01K1-G N-Channel MOSFET, 330 mA, 9 V Depletion, 5-Pin SOT-23 Microchip [LND01K1-G]; 178-5338
by Microchip
0₫
Mã kho: 1785338
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 330 mA |
Maximum Drain Source Voltage | 9 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 5 |
Maximum Drain Source Resistance | 1.4 Ω |
Channel Mode | Depletion |
Maximum Power Dissipation | 360 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -12 V, +0.6 V |
Number of Elements per Chip | 1 |
Length | 3.05mm |
Maximum Operating Temperature | +125 °C |
Height | 1.3mm |
Transistor Material | Si |
Width | 1.75mm |
Minimum Operating Temperature | -25 °C |
