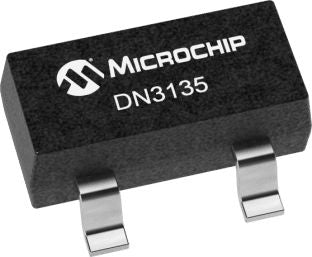

DN3135K1-G N-Channel MOSFET, 72 mA, 350 V Depletion DN3135, 3-Pin SOT Microchip [DN3135K1-G]; 165-5144
by Microchip
0₫
Mã kho: 1655144
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 72 mA |
| Maximum Drain Source Voltage | 350 V |
| Package Type | SOT |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 35 Ω |
| Channel Mode | Depletion |
| Maximum Power Dissipation | 360 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -3.5 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 1.4mm |
| Forward Diode Voltage | 1.8V |
| Length | 3.04mm |
| Maximum Operating Temperature | +150 °C |
| Series | DN3135 |
| Height | 1.02mm |
